>> CHECK OUT OUR INNOVATIONS PRESENTED AT DRUPA:
- ECO CHOCO PACK – FlexiBio inks + barrier coating
- PEANUTS PAPER BAG – FlexiEco inks + barrier coatings
- SAFETY PACKAGINGS
- APPLE JUICE CAN
- YACHT POUCH
- ICE COFFEE LABEL
- TUBE
- CRAFT BEER LABEL
>> PRINTED ELECTRONICS:
We promote the latest technologies used in digital printing. For us, it is most important that even printed electronics are derived from renewable raw materials and are organic.
Here is one application of printed electronics: in the form of an ORGANIC luminous LED placed on a self-adhesive label on a bottle. The label lights up when exposed to a touch detector (but motion, temperature or music detectors can also be used):
>> CHECK THE MARKING AND AUTHENTICITY PROTECTION SYSTEMS OF PACKAGING:
>> CHECK THE MARKING AND AUTHENTICITY PROTECTION SYSTEMS OF PACKAGING:
The DIGIMARC code is placed on both the corrugated cardboard packaging and the flexible shrink sleeves on spices. We encourage you to use the application
>> Made for Chespa: India Spices shrink sleeves
>> Authentic packaging – Symposium 2020
>> Poland, 12.2020
CHESPA products were used for printing:
„Qiuvi Food ELM“ inks, and photopolymer plates produced in the „Elastic K“ technology.
Plates: Chespa Elastic K
Screen: 70 lpc
The graphic hides the ‚DIGIMARC‘ CODE
Printing machine: Mark Andy (in BG)
Printing inks: Chespa Qiuvi Food ELM
Qiuvi Food ELM Black – 500 lpc / 2,5 cm³/m²
Qiuvi Food ELM Cyan – 500 lpc / 2,5 cm 3 /m 2
Qiuvi Food ELM Magenta – 500 l pc / 2,8 cm 3 /m 2
Qiuvi Food ELM Yellow – 500 lpc / 2,8 cm³/m²
Qiuvi Food ELM PMS Green – 240 lpc / 7 cm³/m²
Qiuvi Food ELM PMS Blue – 240 lpc / 7 cm³/m²
Qiuvi Food ELM PMS Violet – 240 lpc / 7 cm³/m²
Qiuvi Food ELM White – 160 lpc / 7 cm³/m²
Substratee: PET 45
>> Made for Chespa: India Spices packaging
>> Authentic packaging – Symposium 2020
>> Poland, 12.2020
CHESPA products were used for printing:
„Flexi Eco“ water-based biodegradable inks which are made from renewable raw materials, and photopolymer plates produced in the „Chespa Uni Corr“ technology.
Plates: Chespa Uni Corr
Screen: 32 lpc
The graphic hides the ‚DIGIMARC‘ CODE
Printing machine: Bobst Materflex HD (in DAKO)
Printing inks: Chespa Flexi Eco
Flexi Eco Extreme White – anilox XL
Flexi Eco Cyan – anilox M
Flexi Eco Magenta – anilox M
Flexi Eco Yellow – anilox M
Flexi Eco PMS Brown – anilox L
Flexi Eco PMS Green – anilox L
Substratee: E flute brown kraft corrugated
====================================
>> CHECK THE MARKING AND AUTHENTICITY PROTECTION SYSTEMS OF PACKAGING:
>> in printed picture
using Digimarc code implemented into the image / graphic placed on the package
>> Made for Chespa: MiniMint packaging
>> Authentic packaging – Symposium 2019
>> Poland, 11.2019
Plates: Chespa Kodak, Chespa DuPont sleeves
Screen: 60 lpc
The graphic hides the ‚DIGIMARC‘ CODE
Printed on: Soma Optima
Printing inks: Celio Lam
Celio Lam yellow – 400 lpc / 4,5 cm³/m²
Celio Lam magenta – 400 lpc / 4,5 cm³/m²
Celio Lam PMS green – 280 lpc / 8,0, cm³/m²
Celio Lam cyan – 400 lpc / 4,5 cm³/m²
Celio Lam black – 400 lpc / 4,5 cm³/m²
Celio Lam white – 140 lpc / 12,0 cm³/m²
Substrate: PET 15 / met
>> in inks and OPV
using invisible markers added directly to the paint or varnish before printing
(for the marker to be active, it can be used even in one color, in an appropriate low concentration that does not affect the quality of the print)
Below we present the symposium products and indicated specific colors in which the security system was used:
>> corrugated cardboard packaging for calendars 2020 — water-based ink FLEXI BOARD green „PMS 355C“

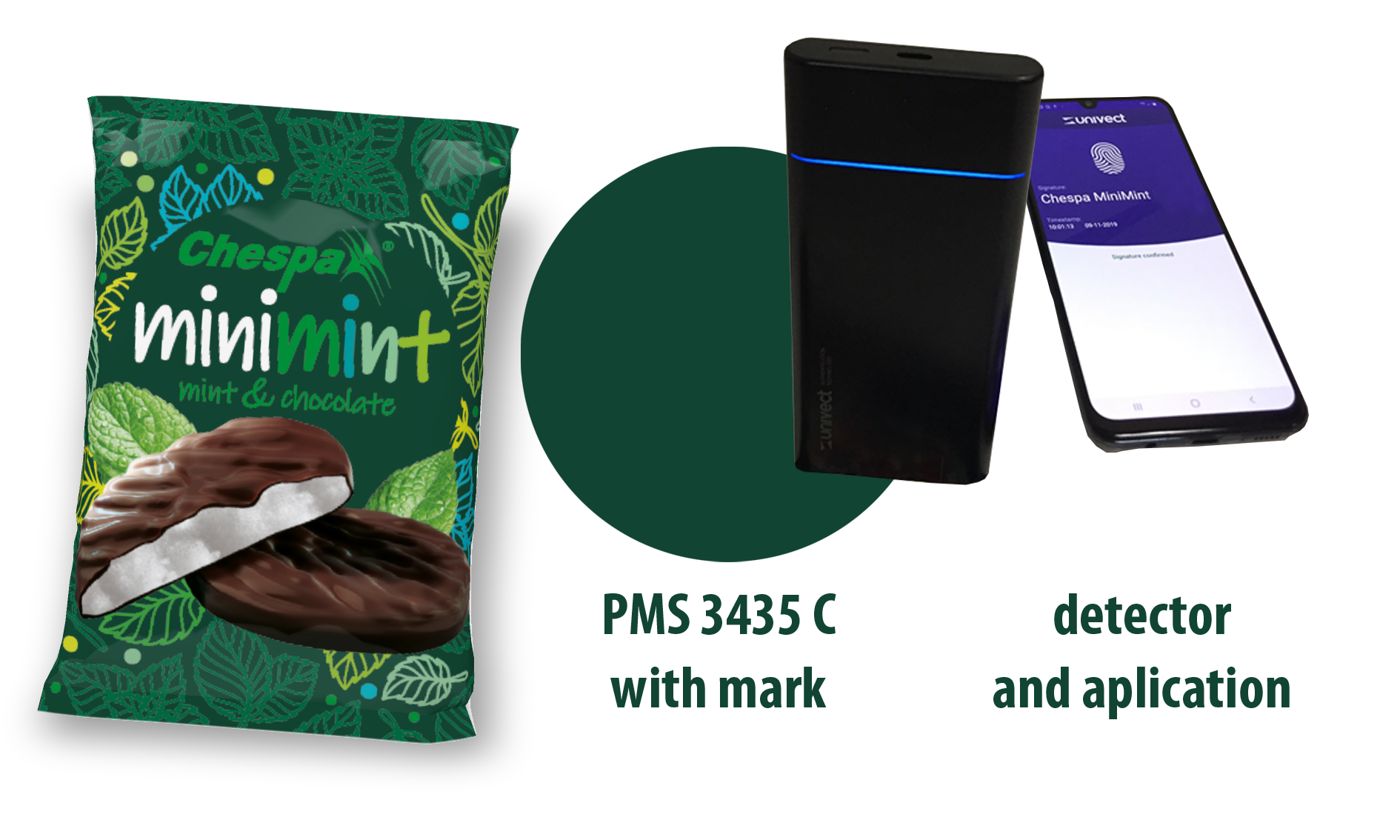

>> foil packaging for MiniMint chocolates — nitrocellulose solvent-based ink CELIO LAM green „PMS 3435C“
>> solid cardboard packaging for MiniMint chocolates — yellow inkjet „NANOJET“
